600mm per min Continuous Brazing 700C Max Vacuum Furnace
  • 600mm per min Continuous Brazing 700C Max Vacuum Furnace
  • 600mm per min Continuous Brazing 700C Max Vacuum Furnace

600mm per min Continuous Brazing 700C Max Vacuum Furnace

Luogo di origine Guangdong, Cina
Marca Sunhope
Dettagli del prodotto
Utilizzo:
Trattamento termico e brasatura
Temperatura di lavoro Rated:
650°C (massimo 700°C)
velocità della cinghia della maglia:
200-1000 mm/min (regolabile, 600 mm/min standard)
Lunghezza muffola:
10 m (personalizzabile)
Atmosfera protettiva:
Azoto
Metodo di raffreddamento:
Raffreddamento ad acqua o raffreddamento ad aria
Energia:
700 kW (regolabile)
Voltaggio:
come richiesto dal cliente
Dimensioni (l*w*h):
Prodotto su misura
Peso:
2T - 35T (a seconda della configurazione)
Certificazione:
CE
Servizio post-vendita:
Ingegneri disponibili per il servizio all'estero
Termini di pagamento e di spedizione
Quantità di ordine minimo
1 INSIEME
Prezzo
negoziabile
Imballaggi particolari
10 set/mese
Tempi di consegna
60 giorni
Termini di pagamento
L/C, T/T
Capacità di alimentazione
Custodia in legno con materiale di imballaggio sicuro
Descrizione del prodotto

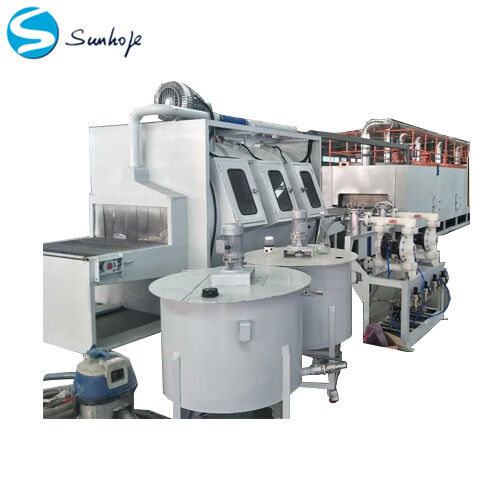

600mm per min Continuous Brazing 700C Max Vacuum Furnace
Product Description

The Aluminum Radiator Brazing Furnace, also known as a High-Temperature Stainless Steel Vacuum Furnace, is engineered for continuous brazing of aluminum heat exchangers. It operates under a protective nitrogen atmosphere using NOCOLOK flux. This system is ideal for mass production of components such as radiators, intercoolers, evaporators, heater cores, oil coolers, condensers, and power station air coolers, ensuring strong, leak-proof joints.

Key Advantages
  1. Enhanced Drive System: Features a chain-driven, high-temperature resistant stainless steel roller mechanism that circulates the mesh belt. This design extends belt lifespan, reduces furnace heat loss, and improves overall thermal efficiency.
  2. Superior Temperature & Atmosphere Uniformity: Equipped with internal circulation fans to ensure even temperature distribution and consistent dispersion of the protective atmosphere, leading to improved brazing quality and faster processing.
  3. Effective Exhaust & Cleaning: An exhaust fan at the furnace rear promptly removes waste gases, enhancing workpiece surface gloss. A dedicated slag removal port at the bottom simplifies maintenance and cleanup.
  4. Advanced Sealing Technology: A newly designed furnace door seal significantly reduces atmosphere gas consumption by 55-65% and allows for deeper atmosphere penetration, increasing processing efficiency by 30-40% at working pressures ≥10-100Pa.
Product Specifications
Parameter Details
Usage Heat Treatment & Brazing
Rated Working Temperature 650°C (Max 700°C)
Mesh Belt Speed 200-1000 mm/min (Adjustable, 600mm/min standard)
Muffle Length 10m (Customizable)
Protective Atmosphere Nitrogen
Cooling Method Water Cooling or Air Cooling
Power 700 kW (Adjustable)
Voltage As per customer requirement
Dimensions (L*W*H) Custom Made
Weight 2T - 35T (Depending on configuration)
Certification CE
Warranty 1 Year
After-sales Service Engineers available for overseas service
About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities
  1. Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  2. Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  3. Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  4. Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
600mm per min Continuous Brazing 700C Max Vacuum Furnace 0600mm per min Continuous Brazing 700C Max Vacuum Furnace 1
Why Partner with SUNHOPE?
  1. Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  2. Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  3. Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  4. True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
