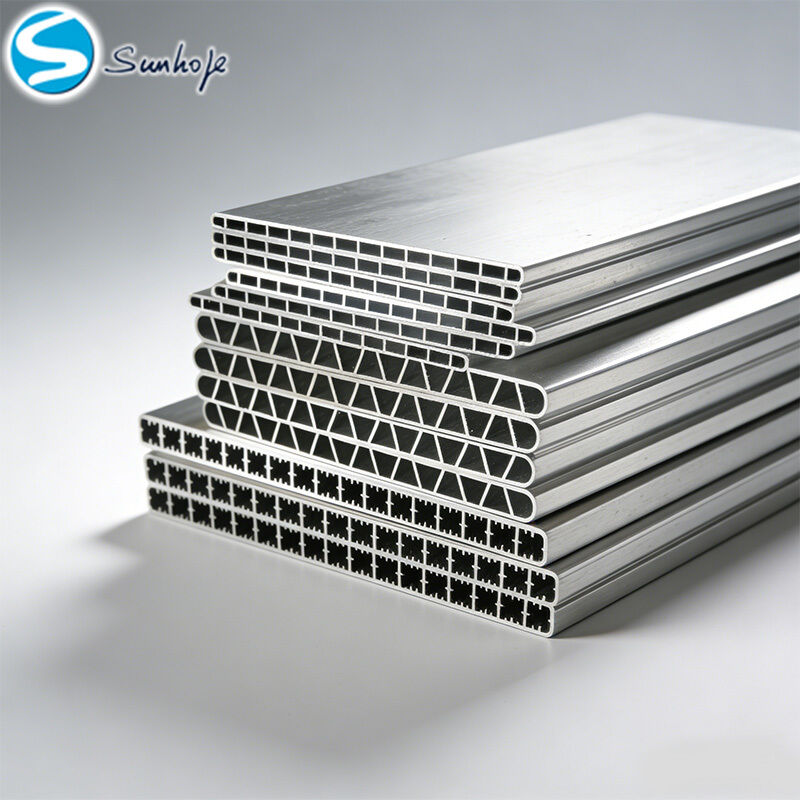

Lightweight High Efficiency Aluminum Microchannel Multi Port Flat Tube
Product Overview
Upgrade your thermal management with our Lightweight High Efficiency Aluminum Microchannel Multi Port Flat Tube – also known as parallel flow aluminum tube or microchannel heat exchanger tube. This multi port extruded tube is the core component for automotive radiators, A/C condensers, and EV battery cooling systems.
Precision extruded as a seamless one‑piece structure, it integrates multiple parallel microchannels that dramatically improve refrigerant/coolant flow and heat exchange. Whether you manufacture automotive condenser tubes, battery liquid cooling plate tubes, or industrial heat exchangers, this lightweight heat transfer tube delivers higher efficiency, lighter weight, and uncompromising reliability. Fully compatible with R134a, CO₂, and other refrigerants.
Key Advantages
Lightweight Champion
30–50% lighter than traditional copper heat exchangers – reduces vehicle energy consumption and extends EV range. A true lightweight heat transfer tube for modern electric vehicles.
40%+ Higher Heat Transfer
Microchannel design maximizes surface area per unit volume, delivering superior cooling and heating performance. Ideal for EV battery cooling tube applications.
Eco & Energy Saving
Works with low‑GWP refrigerants, cuts refrigerant charge, and lowers system operating costs.
Built to Last
Seamless extrusion – no welds, no weak points. Exceptional vibration, corrosion, and fatigue resistance. Made from AA3003 extruded flat tube alloy or high‑strength 6xxx series.
Tailor‑Made
Custom port count, dimensions, channel shape (rectangular / triangular), and surface treatment. Your ideal custom microchannel tube solution.
Technical Specifications
Dimensions (Customizable)
| Parameter |
Standard Range |
Common for Automotive / NEV |
| Length |
120 – 6000 mm |
250 mm ±0.3 mm |
| Width |
8 – 150 mm |
16–25 mm (A/C condenser), 40+ mm (battery cooling) |
| Thickness |
1 – 8 mm |
1.6 mm ±0.02 mm, 2–4 mm (charge air cooler) |
| Ports (channels) |
5 – 60+ |
12–38 (condenser), 40+ (EV battery cooling tube) |
| Hydraulic diameter |
0.5 – 2 mm |
0.8 – 1.2 mm (high‑efficiency) |
| Wall thickness |
0.15 – 0.5 mm |
0.2 – 0.3 mm (thin‑wall option) |
Material & Performance
| Parameter |
Value |
| Alloys |
AA3003 (excellent corrosion resistance), AA3102, 6xxx series (high strength for EV) |
| Thermal conductivity |
≥180 W/(m·K) (premium 6xxx), ≥150 W/(m·K) (standard) |
| Corrosion protection |
Zn spraying, coating, inner oxidation – salt spray test ≥500 h |
| Burst pressure |
≥15 MPa (meets high‑pressure EV & A/C requirements) |
| Operating temperature |
-40°C to +150°C (extreme‑ready) |
Channel Geometry Options
| Shape |
Key Benefit |
Best For |
| Rectangular |
Low flow resistance, uniform heat transfer |
A/C condensers, evaporators |
| Triangular |
High structural strength, anti‑deformation, enhanced turbulence |
Charge air coolers, battery cooling plates, high‑pressure systems |
Applications
-
Automotive Aftermarket – Radiators, A/C condensers, charge air coolers, heater cores
-
New Energy Vehicles – Battery liquid cooling plates, motor controller cooling, EV A/C systems
-
Industrial & Beyond – Commercial A/C, data center liquid cooling, energy storage thermal management, aerospace
Customization Note
We manufacture strictly to customer drawings – 1:1 customisation of channel count, dimensions, hole shape, and surface finish. Contact us for your exact specifications.
About SUNHOPE
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
Core Services & Capabilities
- Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
- Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
- Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
- Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
Why Partner with SUNHOPE?
- Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
- Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
- Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
- True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
