High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester
  • High Precision AC220V Differential Pressure Leak Tester

High Precision AC220V Differential Pressure Leak Tester

Luogo di origine Guangdong, Cina
Marca Sunhope
Dettagli del prodotto
Modalità di controllo:
Automatico/manuale
Stazione di lavoro:
1
Energia:
Elettronico
Medium di prova:
Gas (acqua)
Pressione:
Massimo 10 MPa
Alimentazione elettrica:
0~380V
Termini di pagamento e di spedizione
Quantità di ordine minimo
1 set
Prezzo
negoziabile
Imballaggi particolari
cassa di legno con materiale di imballaggio sicuro
Tempi di consegna
50days
Termini di pagamento
L/C, T/T
Capacità di alimentazione
100set/mese
Descrizione del prodotto

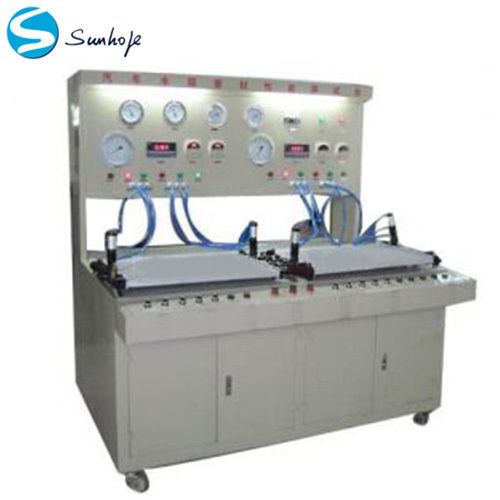

High Precision AC220V Differential Pressure Leak Tester
Product Description

The High Precision AC220V 10MPa Radiator Leak Tester is a differential pressure leak detector engineered for online inspection. It operates by simultaneously pressurizing the test piece and a reference standard with clean, dry compressed air. After the air supply is sealed off, the instrument meticulously monitors for any pressure difference between the two. If the test piece has a leak, a measurable pressure difference occurs. By calculating and analyzing this differential pressure value, the tester accurately determines whether the item meets airtightness standards.

Advantages
  • High Precision Measurement: Utilizes a high-accuracy differential pressure sensor for exceptional measurement precision and reliable results.

  • Intelligent Operation: Features a fully automated intelligent system with a user-friendly 7-inch display for simple, intuitive control.

  • Data Management & Output: Includes a USB data export function and offers an optional printer for generating physical test reports.

Technical Parameters
ParameterSpecification
Test Pressure10MPa
Test Range±0.5Kpa, ±1Kpa, ±2Kpa
Pressure UnitsKpa, Mpa, PSI, bar
Leakage Value UnitsPa, Pa/s, mL/min
Differential Pressure Resolution1Pa
Power SupplyAC220V
Air Source RequirementClean, dry, stable compressed air
About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities
  1. Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  2. Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  3. Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  4. Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
High Precision AC220V Differential Pressure Leak Tester 0 High Precision AC220V Differential Pressure Leak Tester 1
Why Partner with SUNHOPE?
  • Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  • Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  • Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  • True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
