Costruttore Machine del centro del radiatore
>

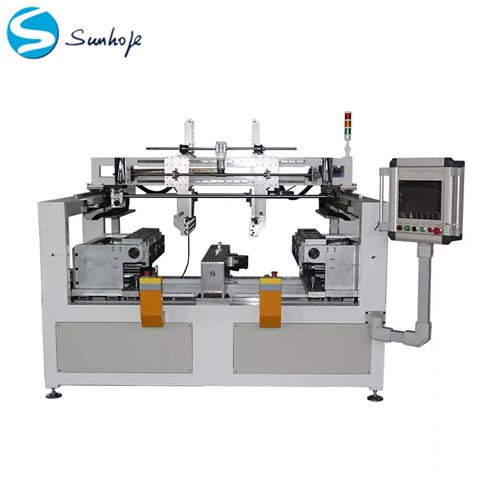

Efficient Versatile Radiator Core Assembly Machine
Product Introduction
The Radiator Core Builder, also referred to as a radiator core assembly or building machine, is engineered for the efficient production of aluminum radiator cores used in cars, trucks, and various automotive applications. It supports both single-row and double-row core configurations and is adaptable for assembling a wide range of heat exchanger cores, including radiators, heaters, condensers, evaporators, intercoolers, and oil coolers. This machine ensures reliable performance and streamlined manufacturing for diverse industrial needs.
Key Advantages
Stable performance with high production efficiency
Quick and convenient mold changeover
Easy to operate and maintain
Flexible application across multiple radiator and heat exchanger types
Specifications
Core Dimension (H x W): 350–780 mm x 200–680 mm
Flat Tube Layers: 1 layer
Tube Laying Mode: Automatic feed into material library / Manual
Flat Tube Flaring Mode: Automatic / Optional
Fin Laying Mode: By fin tray / Manual
Machine Running Time: Approx. 25 seconds
Drive Mode: Pneumatic / Servo
Overall Dimension: 2300 x 1800 x 1800 mm
Weight: 2.2 T
![]()
![]()
![]()
Main Components & Brands
PLC – Mitsubishi
Servo Motor and Controller – Mitsubishi
Touch Screen (Color) – Mitsubishi
Pneumatic System – SMC
Linear Motion Series – TBI
About SUNHOPE
For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.
Core Services & Capabilities
Why Partner with SUNHOPE?
